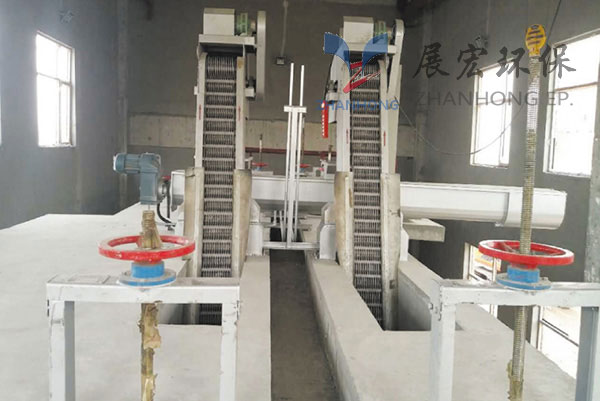

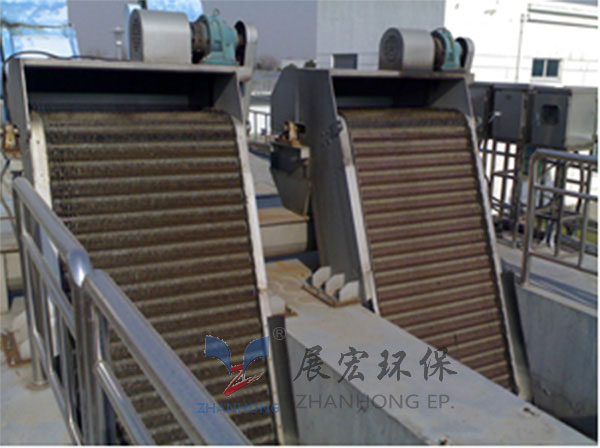

回轉式固液分離機
一、產品簡介
HF型回轉式固液分離機是一種可以連續自動攔截并清除流體中各種形狀雜物的水處理專用設備，可廣泛地應用于城市污水處理。自來水行業、電廠進水口，同時也可以作為紡織、食品加工、造紙、皮革等行業廢水處理工藝中的前級篩分設備，是目前我國******的固液篩分設備之一，填補了國內空白。
二、工作原理:
HF型回轉式固液分離機是由一種獨特的耙齒廠裝配成一組回轉格柵鏈。在電機減速器的驅動下，耙齒鏈進行逆水流方向回轉運動。
耙齒鏈運轉到設備的上部時，由于槽輪和彎軌的導向，使每組耙齒之間產生相對自清運動，絕大部分固體物質靠重力落下。另一部分則依靠清掃器的反向運動把粘在耙齒上的雜物清掃干凈。
按水流方向耙齒鏈類同于格柵，在耙齒鏈軸上裝配的耙齒間隙可以根據使用條件進行選擇。當耙齒把流體中的固態懸浮物分離后可以保證水流暢通流過。整個工作過程是連續的，也可以是間歇的。
三、特點：
該設備的****優點是自動化程度高、分離效率高、動力消耗小、無噪音、耐腐蝕性能好，在無 人看管的情況下可保證連續穩定工作，設置了過載安全保護裝置，在設備發生故障時，會自動停機，可以避免設備超負荷工作。
本設備可以根據用戶需要任意調節設備運行間隔，實現周期性運轉；可以根據格柵前后液位差自動控制；并且有手動控制功能，以方便檢修。用戶可根據不同的工作需要任意選用。
由于該設備結構設計合理，在設備工作時， 自身具有很強的自凈能力，不會發生堵塞現象， 所以日常維修工作量很少。
四、技術參數和選型
1．設備和耙齒規格
設備規格按機寬尺寸分HF300-3600型。機寬超過1800mm，則做成并聯機。耙齒柵隙分為1mm、3mm、5mm、10mm、20mm、30mm、40mm、50mm等各種規格，選型由過水量、提升高度、固液分離總量和所分離物質的形狀、顆粒大小來選擇，同時選配不同的材質。
2．設備長短規格
設備標準溝深為1535mm，可根據用戶需要及使用實際情況任意加長。特殊規格另行設計。
Rotary mechanical grille Rotary solid-liquid separator Product introduction The HF type rotary solid-liquid separator is a special water treatment equipment that can automatically intercept and remove various shapes and impurities in the fluid continuously. It can be widely used in urban sewage treatment, inlets of water supply industry and power plant. At the same time, it can also be used as a pre-stage screening equipment in the wastewater treatment process of textile, food processing, papermaking, leather and other industries. It is one of the most advanced solid-liquid screening equipment in China, filling the domestic gap. Working principle: The HF rotary solid-liquid separator is a set of rotary grid chains assembled from a unique harrow gear. Under the drive of the motor reducer, the harrow gear chain rotates in the direction of backwater flow. When the harrow gear chain runs to the upper part of the device, due to the guiding of the sheave and the curved rail, a relative self-clearing motion is generated between each set of harrow gears. Most solids fall by gravity, while the other part is swept away by the reverse motion of the sweeper. According to the direction of the water flow, the harrow gear chain is similar to the grid, and the harrow gear gap assembled on the sprocket chain can be selected according to the conditions of use. When the solid suspension in the fluid is separated, it can ensure the smooth flow of water. The entire work process is continuous or intermittent. Characteristics: The biggest advantage of this equipment is high degree of automation, high separation efficiency, low power consumption, no noise and good corrosion resistance. Continuous and stable operation is guaranteed without being taken care of. The overload safety protection device is set up, and when the equipment fails, it will automatically stop, which can avoid overloading the equipment. According to the needs of users, the operation interval of the equipment can be adjusted arbitrarily to achieve periodic operation. It can be automatically controlled according to the liquid level difference before and after the grid. And it has the manual control function, in order to facilitate the maintenance. Users can choose according to different work needs. Due to the reasonable structural design of the equipment, when the equipment is working, it has a strong self-cleaning ability, and there is no clogging phenomenon, so the daily maintenance workload is small. Technical parameters and selection 1. Specification of equipment and harrow gear The equipment specifications are hf300-3600 according to the machine width. If the width of the machine exceeds 1800mm, it can be made into parallel equipment. Harrow gear grid gap is divided into 1mm, 3mm, 5mm, 10mm, 20mm, 30mm, 40mm, 50mm and other specifications. The selection is determined by the amount of excess water, the height of lifting, the total amount of solid-liquid separation, and the shape and particle size of the separated substances. Different materials are also selected. 2. Equipment length specification The standard ditch depth of the equipment is 1535mm, which can be arbitrarily extended according to the user's needs and actual conditions. Special specifications will be designed separately.
